Product Description

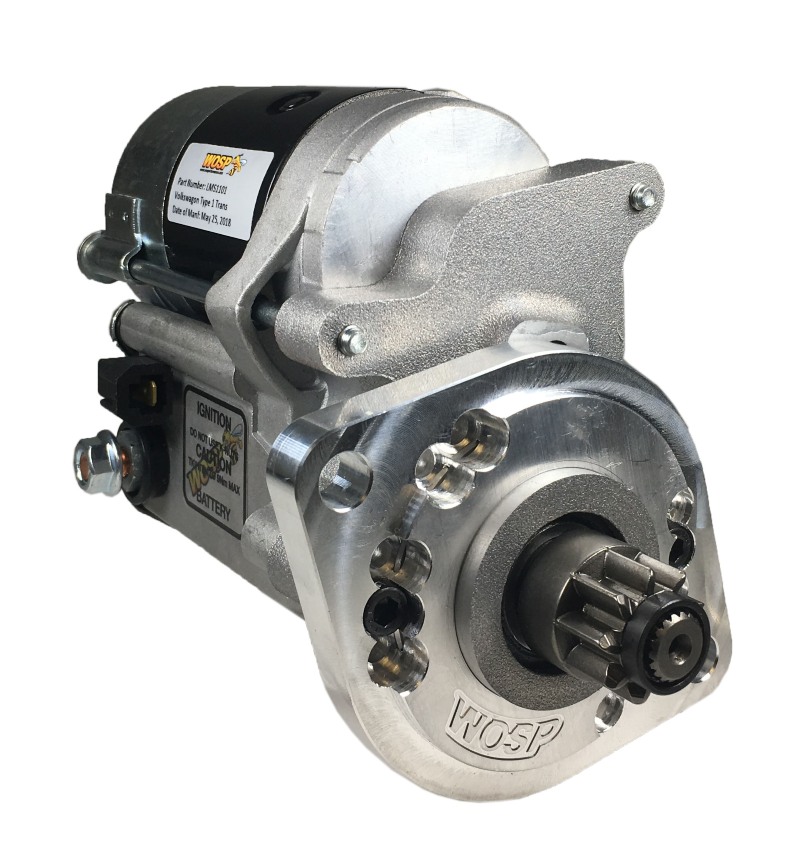

Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction

Product Specification

Applications

VW Beetle '67-on (130 tooth ring gear)
Porsche 356 'late type' 130 tooth ring gear
VW 1302 (Type 1) 1.2 / 1.3 / 1.6 / Petrol AB / AC / AD / AF / D 'TYP1' ( 11 / 15 ) '70-'79
VW 1303 (Type 1) 1.6 Petrol AD / AJ / AS 'TYP1' ( 11 / 15 ) '70-'79
VW 1500 1.5 Petrol K 'TYP3' ( 311 / 313 ) '67-'73
VW 1600 1.5 / 1.6 Petrol K / U / T / P 'TYP3' ( 311 / 313 / 315 / 317 / 365 / 367 ) '67-'73
VW 181 1.5 Petrol H ( 181 ) '69-'70
VW 411 1.7 Petrol V / W / Z 'TYP4' ( 41 ) '68-'73
VW 412 1.17 Petrol W 'TYP4' ( 41 / 42 ) '72-'73
VW Beetle (Type 1) 1.2 / 1.3 / 1.5 / 1.6 Petrol AB / AC / ACD / AF / AR / D / E / F / H / M52 ' TYP1 ' ( 11 / 1B1 ) '65-'03
VW Beetle 1300 (Type 1) 1.3 AB 'TYP1' ( 11 ) '70-'73
VW Beetle 1302 (Type 1) 1.3 / 1.6 Petrol AB / AD 'TYP1' ( 11 ) '70-'72
VW Beetle 1303 (Type 1) 1.6 Petrol AD / AJ / AS 'TYP1' ( 11 / 15 ) '71-'79
VW Kaefer / Kaver (Type 1) 1.2 / 1.3 / 1.5 / 1.6 Petrol AB / ACD / AD / AJ / AS / AF / AR / E / H / F / D / M52 'TYP1' ( 11 / 111 / 1B1 ) '65-'03
VW Karmann Ghia 1.5 Petrol H ( 141 ) '66-'69
VW Transporter (Type 2 ) 1.5 / 1.6 / 1.7 / 1.8 Petrol AD / AG / AS / AP / AW /CA / CB / B / H / H1 'TYP2' ( 211 / 221 / 231 / 235 / 241 / 261 / 265 ) '67-'79
VW / Volkswagen 'Various' Models

Numerous options available with terminals on top and underneath in differing power outputs, this unit is left hand 'USA style' terminals on top,

This product is equivalent to

• Lucas-LRS00133
• Lucas-LRS00244
• Lucas-LRS00246
• Lucas-LRS00287
