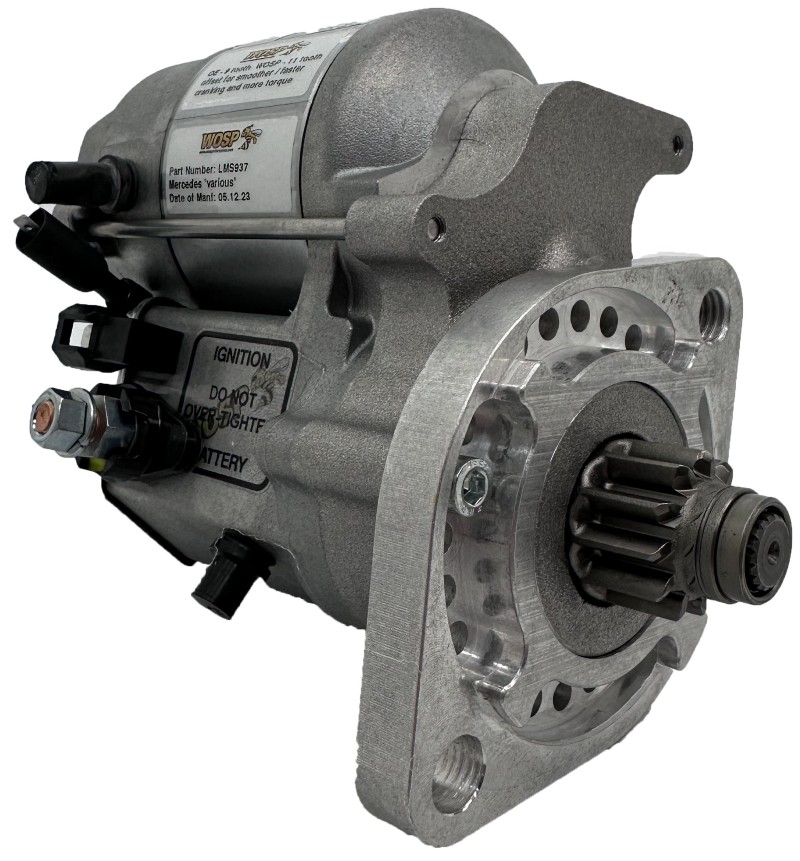

Mercedes 200 | 220 | 230 | 250 | 280 | 300 high torque starter motor
LMS937
STARTER MOTOR INSTRUCTIONSProduct Description
Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction
Product Specification
| Type | Weight | Voltage | Polarity | Power |
|---|---|---|---|---|
| Denso OSGR *r | 3.7Kg / 8.15lbs | 12V | Both | 1.4kW |
| Rotation | Pinion Teeth | Pinion Dia | ||
| CW | 11 | 29mm |
Applications
Mercedes Benz 200 2L petrol W115 '68-'76
Mercedes Benz 220 2L & 2.2L petrol W115 '68-'73
Mercedes Benz 230 2.3L petrol W115 '73-'76
Mercedes Benz 250 2.5L & 2.8L petrol W114 '67-'76
Mercedes Benz 280 2.8L & 3.5L petrol W108 / W111 / W113 '67-'72
Mercedes Benz 300 3.5L petrol W109 '68-'72
Original Pinion is 9 tooth - Ours is 11 tooth with an offset plate
