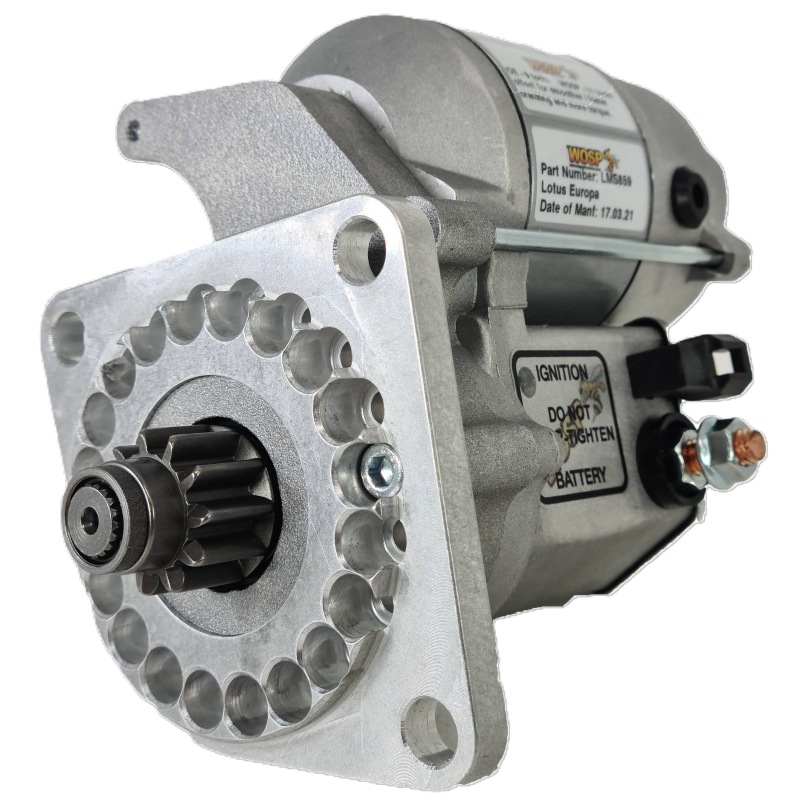

Lotus Europa | Renault engines high torque starter motor
LMS859-11
STARTER MOTOR INSTRUCTIONSProduct Description
Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction
Product Specification
| Type | Weight | Voltage | Polarity | Power |
|---|---|---|---|---|
| Denso OSGR *r | 3.7Kg / 8.15lbs | 12V | Both | 1.4kW |
| Rotation | Pinion Teeth | Pinion Dia | ||
| CW | 11 | 29mm |
Applications
Lotus Europa (Renault engine) R15 / 16 / 17 / 18 / 20 / Traffic 1.6
Renault various 1.6L '78-'86
Renault R12 Gordini '74
Renault R15 TS '72-'75
Renault R17 All models '72-'76
Renault 18 1.6 Petrol A2M723 / A7L752 / A6M725 / 841725 / 841726 ( R1341 / R1342 / R134A ) '78-'86
Renault Fuego 1.6 Petrol A2M723 / A6M725 / A6M726 ( R1361 / R1362 ) '80-'86
Renault Trafic V1300 1.6 Petrol A1M707 Phase I ( T311 ) '85-'86
Original Pinion is 9 tooth - Ours is 11 tooth with an offset plate
