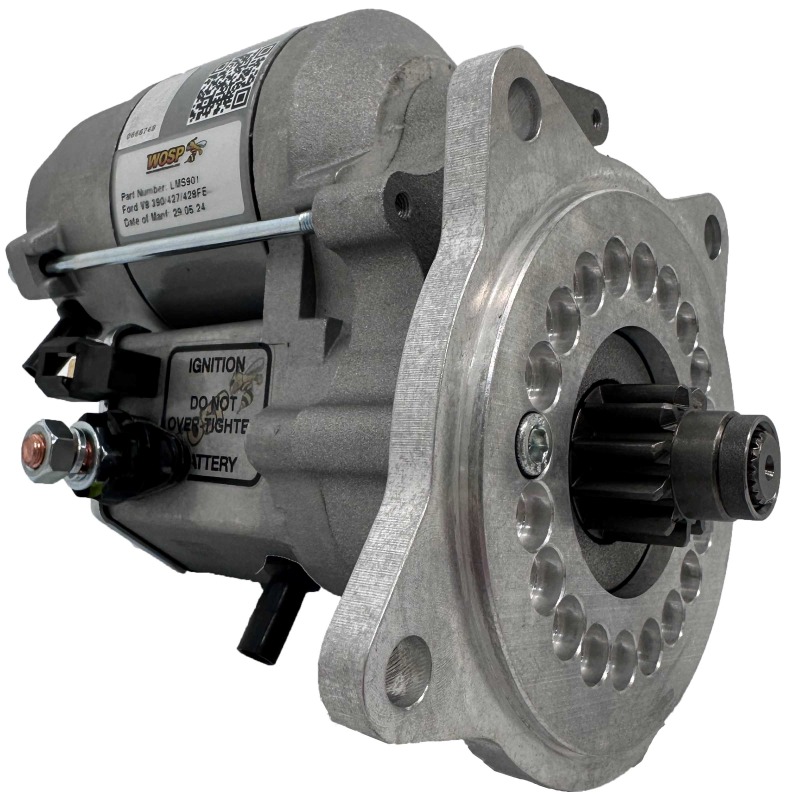

Ford V8 390 | 427 | 428 (FE engine) RH (motor on top) 1.4kW high torque starter motor
LMS1122
STARTER MOTOR INSTRUCTIONSProduct Description
Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction
Product Specification
| Type | Weight | Voltage | Polarity | Power |
|---|---|---|---|---|
| Denso OSGR *r | 3.7Kg / 8.15lbs | 12V | Both | 1.4kW |
| Rotation | Pinion Teeth | Pinion Dia | ||
| CW | 9 | 25mm |
Applications
Ford V8 390 / 427 / 428 (FE engine)
Ford Y-Block 239-312 V8 '56-'64
Ford Y-Block 239-312 V8 '54-'55 (if converted to 12 Volt)
Ford straight 6 223 '58-'64 (Falcon etc)
Ford Mustang straight 6 '64-'70 (200 Ci)
Lincoln MEL Series V8 383 / 410 / 430 / 462 (if 12 Volt)
