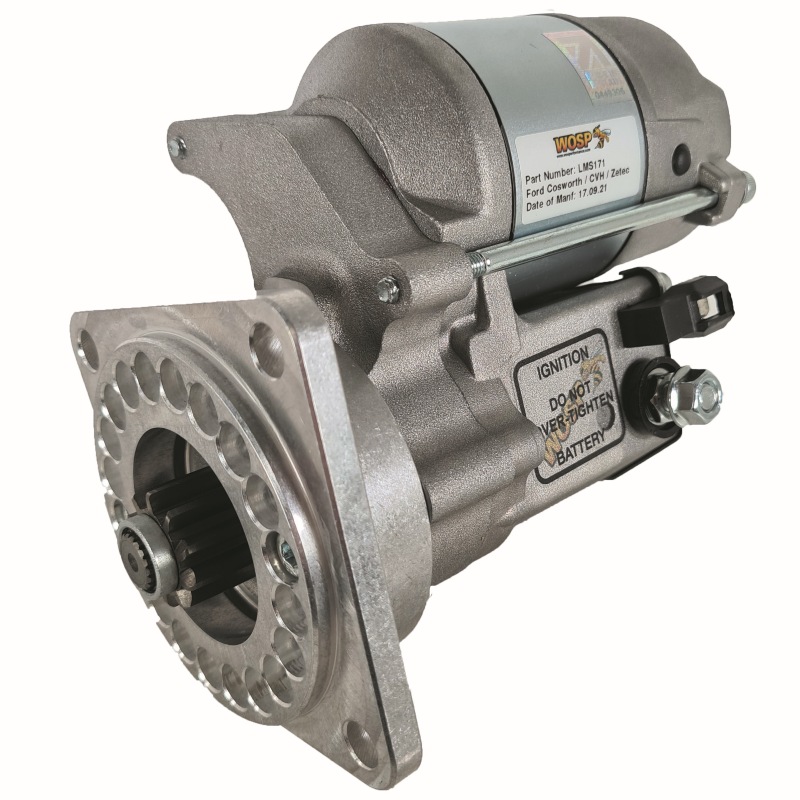

Ford Pinto (Standard 135 tooth ring gear) engine super-duty starter motor
LMS172-11
STARTER MOTOR INSTRUCTIONSFord Pinto and Crossflow ‘Common’ WOSP Starters Motors FlyerFord Pinto Engine WOSP Starter Motors Flyer
Find a stockist
Product Description
Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction
Product Specification
| Type | Weight | Voltage | Polarity | Power |
|---|---|---|---|---|
| Denso OSGR | 4.1Kg / 9.03lbs | 12V | Both | 2.0kW |
| Rotation | Pinion Teeth | Pinion Dia | ||
| CW | 11 | 29mm |
Applications
Ford Pinto OHC (RS bellhousing) (135 tooth ring gear)
Ford Pinto OHC (Mazda RX8 transmission)
Ford Cortina MKIII 1600GT / 2000E '71-'72
Morgan 4/4 '82-on
Reliant Scimitar GTE auto '76-'80
TVR Tasmin 200
"Suits 135 tooth flywheel Original Pinion is 9 tooth - Ours is 11 tooth with an offset plate"
