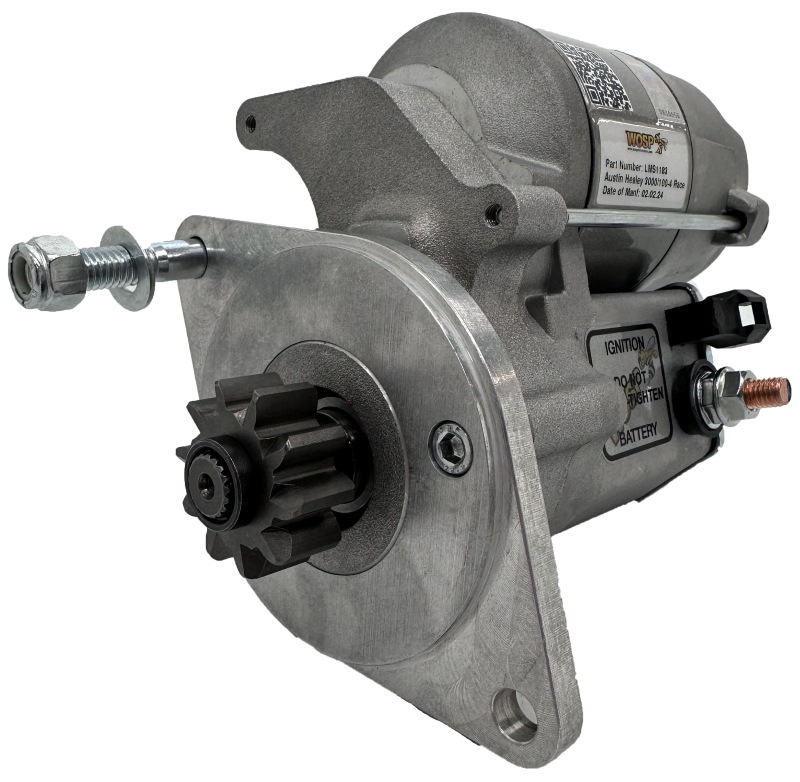

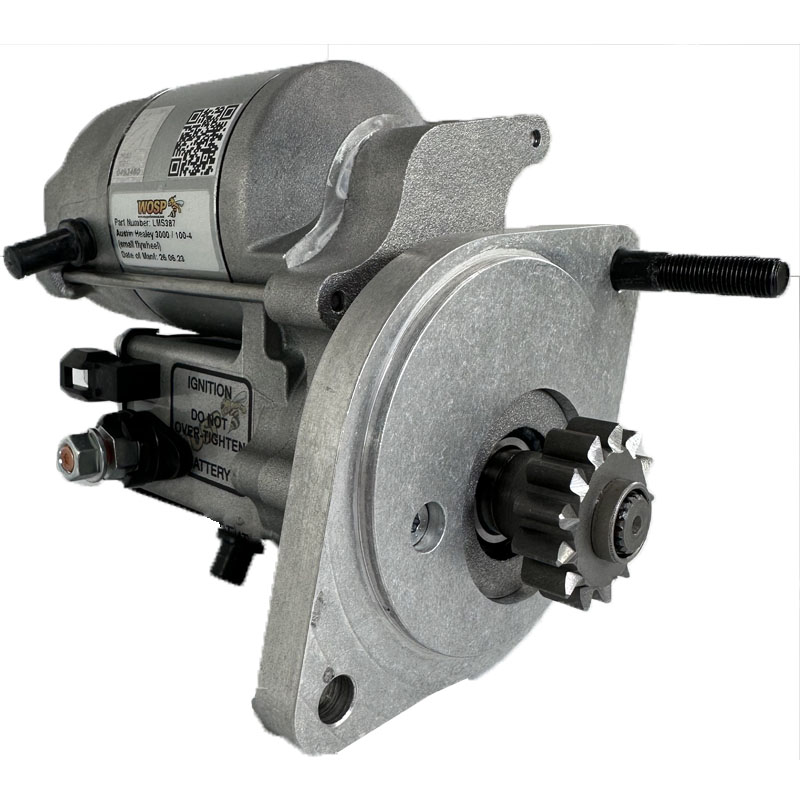

Austin Healey 100 | 3000 | 4 & 6 cyl high torque starter motor
LMS005
STARTER MOTOR INSTRUCTIONSProduct Description
Designed and manufactured in house using only OE platforms, these lightweight, gear reduction and high torque starter motors are ideal for use in hostile or bespoke environments and are warranted for 12 months and in most cases offer twice the power and half the current draw and weight to an original unit. Unless specifically intended for just one application all our units can be rotated 360° on their own axis giving the unit an infinite number of mounting positions to clear any obstruction
Product Specification
| Type | Weight | Voltage | Polarity | Power |
|---|---|---|---|---|
| Denso OSGR *r | 3.7Kg / 8.15lbs | 12V | Both | 1.4kW |
| Rotation | Pinion Teeth | Pinion Dia | ||
| CW | 10 | 40mm |
Applications
Austin Healey 100-4 / 100-6
Austin Healey 3000 BN1 - BJ8
Austin Healey 4 & 6 cylinder '53-'65
